Cheaper Hydrogen Production
Electrolytic hydrogen manufacturing powered by renewable energy is viewed as an environmentally safe way to relieve international environmental and energy issues. In the journal Angewandte Chemie, a research study team presented a new and low-cost material for electrodes that may offer very efficient, energy-saving hydrogen production: porous, phosphorized CoNi2S4 yolk-shell nanospheres.
The half-reactions of water electrolysis-hydrogen and oxygen evolution– are unfortunately slow and need a great deal of power. Catalytically effective electrodes, specifically those based on precious metals, can speed up the electrochemical processes and enhance their energy efficiency. Nevertheless, their extensive use is hampered by high costs, limited abundance, and also reduced stability. Alternatives based upon abundant, inexpensive metals typically do not work satisfactorily for both half-reactions.

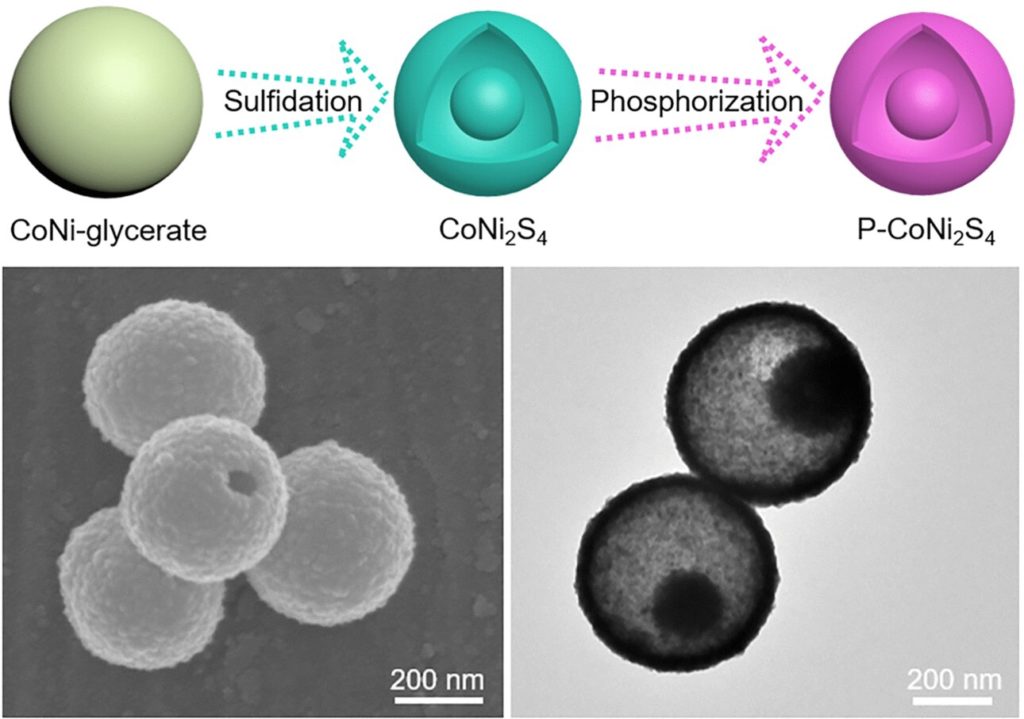

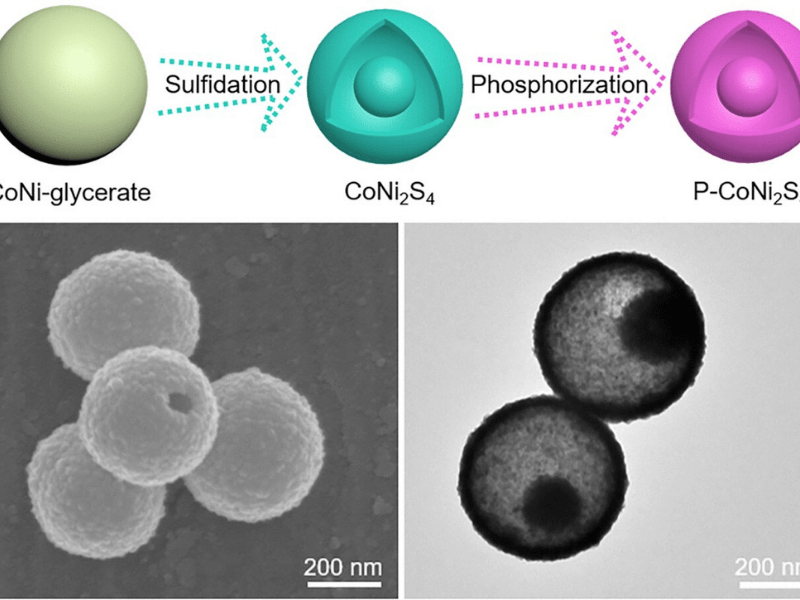

A team led by Shuyan Gao (Henan Normal University, China) as well as Xiong Wen (David) Lou (Nanyang Technological University, Singapore) has currently created a new, affordable, multifunctional electrode material based upon cobalt (Carbon monoxide) and nickel (Ni) for effective electrocatalytic hydrogen production. To produce the materials, nanospheres constructed from cobalt-nickel-glycerate are exposed to combined hydrothermal sulfidation and gas-phase phosphorization. This develops objects called yolk-shell nanoparticles composed of phosphorus-doped cobalt-nickel-sulfide (P-CoNi2S4). These are minuscule spheres with a compact core and a porous shell with a space in between, like an egg whose yolk is enveloped by the egg white and does not touch the shell.
The increase in the proportion of Ni3+ relative to Ni2+ in the hollow particles due to phosphorus doping also allows faster charge transfer, leading the electrocatalytic reactions to run quicker. The material can be utilized as an anode or a cathode and displays high activity and stability in hydrogen production and oxygen in water electrolysis.
To reduce the general voltage of the electrolysis cell, hybrid electrolysis principles are also being investigated. For instance, instead of being combined with oxygen production, hydrogen manufacturing could be combined with the oxidation of urea, which requires far less energy. Sources of urea could also be waste streams from industrial syntheses in addition to the sanitary sewage. The brand-new nanoparticles are additionally highly beneficial for this half-reaction.
The required cell voltage for water and urea electrolysis is comparatively low (1.544 V or 1.402 V, respectively, at 10 mA cm-2 over 100 hrs). This makes the new bimetallic yolk-shell fragments superior to most well-known nickel-sulfide and precious-metal-based electrocatalysts. They offer a promising approach for electrochemical hydrogen manufacturing and for the treatment of urea-containing wastewater.
Originally published on Sciencedaily.com. Read the original article.
Reference: Xue Feng Lu et al, Phosphorized CoNi 2 S 4 Yolk‐Shell Spheres for Highly Efficient Hydrogen Production via Water and Urea Electrolysis, Angewandte Chemie International Edition (2021). DOI: 10.1002/anie.202108563
