Innovative Battery Systems Shine A Bright Light On The Future Of Flying Cars

Robotically engineered machines, jet packs, and flying automobiles appeared to be guarantees for the 21st century. Since then, we have instead been given mechanized, autonomous vacuum cleaners. A team of scientists at Penn State is now investigating the requirements for electric vertical vehicle takeoff and landing (eVTOL), and developing and evaluating potentially battery energy sources.

Chao-Yang Wang, the owner of the William E. Diefender Chair of Mechanical Engineering and director of the Electrochemical Engine Center at Pennsylvania State University, said that in his vision, flying cars have the potential to cut down on a considerable amount of time, increase productivity and open up the skies corridors to transportation, Chao-Yang Wang continues adding that electric vertical take-off and landing vehicles are genuinely a challenging technology for batteries.

On 7 June 2021, the researchers defined the technical requirements for batteries in flying vehicles in a report on a prototype battery in joule.

Wang commented that batteries for flying vehicles require incredibly high power density to ensure that the vehicle can remain in the air; continuing, Wand added that the vehicles also need very high power while taking off and landing. It calls for a great deal of power to go vertically up and down.

Wang points out that the batteries will certainly also need to be quickly recharged to ensure that there could be high income throughout rush hours. He sees these vehicles having regular liftoffs, landings, and recharging rapidly and frequently.

Wang said that, Commercially, he would anticipate the vehicles to make 15 trips two times a day during rush hour, this way justifying the price of the vehicles. Wang continues, mentioning that initial usage will most likely be from a city to an airport transporting three to four people in a 50-mile range.

Weight is, additionally, a factor to consider for these batteries as the vehicle will need to lift and land the batteries. As soon as the eVTOL takes off, on a short flight, the average speed will be about 100 miles per hour, and a lengthy flight would average 200 miles per hour, according to Wang.

The scientists experimentally tested two energy-dense lithium-ion batteries that can recharge with sufficient power for a 50-mile eVTOL flight in five to ten minutes. These batteries have the capability to support beyond 2,000 fast-charger cycles over their lifetime.

Wang and his team made use of systems they have been developing for electric vehicle batteries. The secret is to heat up the battery to enable fast charging without forming lithium spikes that damage the battery and can be dangerous. It turns out that heating up the batteries additionally enables the fast discharge of the energy kept in the battery allowing for take-offs and landings.

The scientists heat up the batteries by integrating a nickel foil that brings the battery quickly to 140 degrees Fahrenheit.

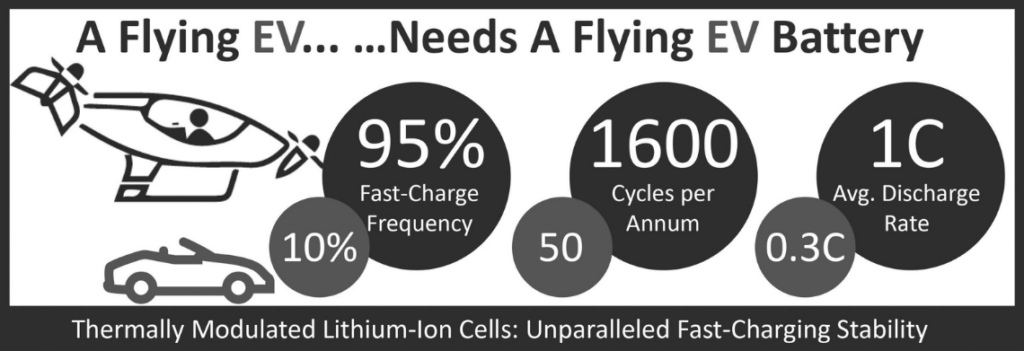

Wang pointed out that under usual circumstances, the three attributes essential for an eVTOL battery end up working against each other. Wang added that high power density decreases quick charging and quick charging generally decreases the number of possible recharge cycles, but that the team is able to do all three in a single battery.

One completely distinct element of flying cars is that the batteries always have to maintain some charge. Much the contrary to cellular phone batteries, for instance, that function best if completely discharged and then recharged, a flying car battery can never be allowed to entirely discharge in the air due to the fact that power is needed to maintain flight and to land. having a margen of safety in the battery of a flying vehicle is very importent.

When a battery is empty, the internal resistance to charging is reduced; however, the greater the available charge, the more difficult it is to send additional power into the battery. Generally, recharging slows down as the battery fills. Nevertheless, by heating up the battery, recharging can maintain itself in the five-to-ten-minute range.

Wang said that he hopes that the work published by him and his team in this paper will provide people with a solid idea that we do not require an additional two decades to finally obtain these vehicles. Wang also added that he believes that his team has shown that the eVTOL is commercially feasible.

Originally published on Scitechdaily.com. Read the original article.

Reference: “Challenges and key requirements of batteries for electric vertical takeoff and landing aircraft” by Xiao-Guang Yang, Teng Liu, Shanhai Ge, Eric Rountree and Chao-Yang Wang, 7 June 2021, Joule.
DOI: 10.1016/j.joule.2021.05.001
