James Webb Space Telescope Picture Shows Visible Damages From Micrometeoroid Strike

A tiny space rock has shown to have a significant impact on NASA’s recently operational deep-space telescope.

One micrometeoroid hit the James Webb Space Telescope between Might 22 as well as twenty-four, impacting one of the observatory’s eighteen hexagonal golden mirrors. NASA had revealed the micrometeoroid strike in June and noticed that the particles were more significant than pre-launch modeling had actually accounted for.

Currently, researchers on the mission have actually shared a photo which drives home the severity of the blow in a report (opens in new tab) launched July 12, describing what researchers on the operation learned about using the observatory during its 1st 6 months in space.

Happily, in this case, the overall impact on Webb was tiny. That stated, the report outlines the investigation and modeling that engineers are undertaking to assess the long-term effects of micrometeoroids on Webb.

The telescope should last twenty years in space based on gas use. However, scientists are not sure how much of effect micrometeoroid strikes will certainly have upon its operations, the report authors said.

Micrometeroids are a known risk of space operations, and encountering them is by no means new to researchers; the International Space Station and the Hubble Space Telescope are among extended lasting programs which are still operational despite occasional space rock strikes.

Nonetheless, Webb’s orbit at Lagrange Factor 2, regarding 1 million miles (1.5 million kilometers) away from the Earth, might change the risk profile significantly.

Webb engineers first identified deformations on the primary mirror during the commissioning period throughout the alignment (or wavefront sensing) phase, which placed the 18 segments of the hexagonal mirror into the best position to catch light.

The report said that these first six strikes fulfilled pre-launch expectations of price as they were available at a rate of once per month. In addition, some of the resulting deformations are correctable through mirror realignments.

Nevertheless, it is the magnitude of one of these six strikes that caused more concern, the paper noted, as it caused a considerable blemish to a segment referred to as C3. The strike in late May “caused a considerable uncorrectable modification in the overall figure of that segment,” the report stated.

In this case, however, the total impact on the mission is small “because only a small portion of the telescope area was affected.” Seventeen mirror segments stay unblemished, and engineers were able to realign Webb’s segments to account for most of the damage.

Engineers are still modeling how often such events will take place. “It is not still clear whether the May 2022 hit to segment C3 was a rare event,” the group wrote. By “rare,” they said it is possible that they occurred to get a high-energy impact that should statistically occur only once every few yrs.

Alternatively, Webb might be “more susceptible to damages by micrometeoroids than pre-launch modeling predicted,” the group created. Modeling is ongoing to approximate the dangerous population of micrometeoroids and to figure out solutions, such as restricting pointing direction.

One treatment could be minimizing the amount of time Webb points directly into its orbital direction, “which statistically has higher micrometeoroid rates and also energies,” the group composed.

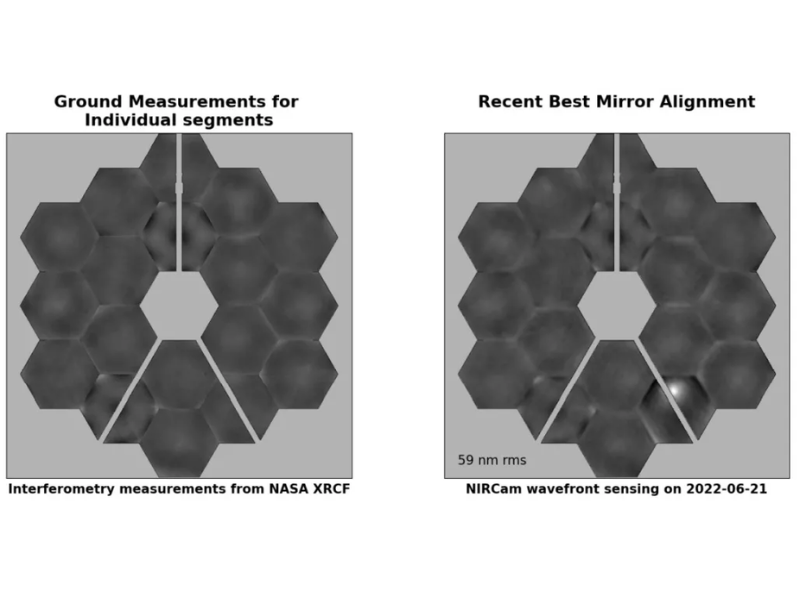

Essential mirror performance is assessed by how much it deforms starlight, according to Astronomy magazine( opens in new tab), and measured utilizing what scientists call wavefront mistake root mean square. When Webb’s mission started, the affected C3 segment had a wavefront mistake of 56 nanometers RMS (root mean square), which remained in line with the 17 other mirror portions.

Post-impact, however, the mistake boosted to 258 nm RMS, but realignments to the mirror segments significantly reduced the overall impact to only 59 nm RMS. For the time being, the group wrote that Webb’s alignment is well within efficiency limits, as the readjusted mirror segments are “about 5-10 nm RMS above the previous best wavefront error RMS values.”

For now, engineers are keeping an eye on potential future dust-generating occasions, such as in 2023 and also 2024, when Webb is expected to fly through particles left behind by Halley’s Comet, according to Nature(opens in new tab).

NASA’s meteoroid atmosphere office at the Marshall Space Flight Center in Huntsville, Alabama, is modeling the effect danger to Webb associated with Halley. During recent media briefings, NASA authorities have also highlighted that the micrometeoroid concern has their full attention, Nature included.

Read the original article on Space.
