Pathogenic Invasions: Changing Neighborhood Networks Impact Illness Spread

The COVID-19 pandemic has clarified the relevance of comprehending precisely just how diseases spread throughout transport networks. Nonetheless, rigorously figuring out the connection between disease risk and changing networks, which either humans or the environment may alter, is challenging due to the intricacy of these systems.

In a paper published on 10 June 2021, in the SIAM Journal on Applied Math, Stephen Kirkland (University of Manitoba), Zhisheng Shuai (College of Central Florida), P. van den Driessche (College of Victoria), and also Xueying Wang (Washington State University) research how modifications in a network of several interconnected communities impact the taking place spread of the condition. The four researchers were hosted as a Structured Quartet Research Study Set by the American Institute of Math.

A standard mathematical design uses numerous interconnected patches to stand for different geographical regions linked by transportation networks. Illnesses are typically transmitted along with these networks using insects like mosquitoes and ticks, which might latch on individuals or goods. Pathogenic microorganisms, such as germs and also protozoa, can likewise spread diseases through river networks. “This condition transmission could increase due to flooding, which can create a new shortcut,” Shuai claimed. “Just how would condition characteristics then change in feedback to this change in the network?”

To answer this question, the researchers looked to determine the basic reproduction number R0 of the network in its entirety. R0 figures out a condition’s invasibility if it is higher than 1, the variety of infections will probably expand; if it is less than 1, the disease will at some point die out. “When the dispersion between patches is faster than the characteristics of the illness or populace, it ends up that the network reproduction number R0 can be estimated as a heavy average of the individual patch reproduction numbers,” Wang stated.

For example, if microorganisms in a river are contaminating individuals with cholera and the water is relocating much faster than the pathogens decay, one can approximate R0 for the entire river network as a mix of the basic reproduction numbers for every separate community along the river. This is especially important because the value of R0 can guide disease control techniques– though the details it gives are limited, and it can not predict the actual dimension of an outbreak.

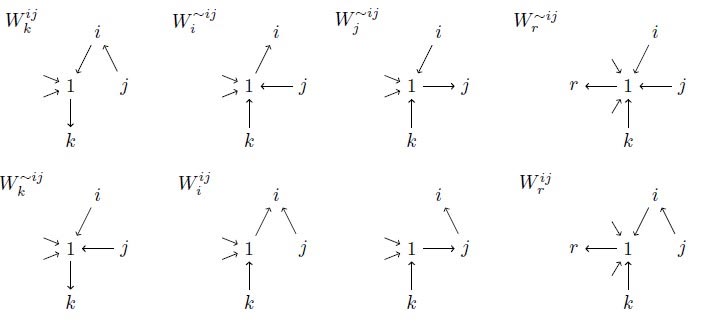

The writers developed new strategies based on several areas of applied maths to establish precisely how R0 modifications when the framework of a network is modified. Their mathematical technique allowed evaluation on two different kinds of model networks: a star network, which includes several branches that originate from the main center, and a path network, which provides for numerous communities that are located sequentially along a track.

“A star network can represent human transportation between one hub– like a huge city– and several leaves, which would certainly stand for small cities or suburban areas,” Wang said. “A path network can represent communities on a river or stream.” These structures are additionally adaptable– for example, the star network serves for modeling several possible circumstances. “In the star network, we can consider a central water source– the core of the star– with numerous communities provided by that source,” van den Driessche said.

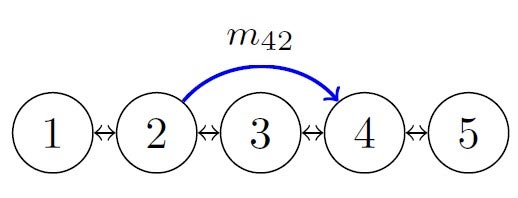

It is feasible to add an arc to the course network that bypasses several locations along the river, representing a significant flood. For example, if a brand-new arc connects a downstream spot to an upstream area, the group’s model suggested that the illness transmission danger is reduced at downstream places and increased at upstream regions. The model also included a particular “hot spot” along the river at which the disease transmission rate is greater; the bypass could avoid this area. In an example circumstance of a course connect with five patches ordered 1 (most upstream) to 5 (most downstream). There is a detour from patch 2 to 4; hot spots at different areas produce different impacts. When patch 3 is the hot spot, there is no change in the value of R0 for the entire river network; a hot spot at spot 1 or 2 brings about a reduction in R0, while a hot spot at patch 4 or 5 causes a rise in R0.

The writers utilized their findings to check out possible approaches for managing disease breakouts by presenting new links on a network or transforming the strength of existing links. “Our discoveries from both the star and the path networks highlight that the placement of the hot spot and the connections among patches are vital in figuring out the ideal strategy for minimizing the threat of an infection,” Wang claimed. The researchers’ techniques evaluated the efficiency of various strategies in controlling invasibility and found the mathematical conditions under which it is best to change the quantity of movement between certain areas.

The insights from this study could help develop future disease intervention approaches. “In some real settings, we may not have much control over the degree of invasibility in the individual patches, but we might have much better control over the structure of the network attaching those patches, for instance, in a network of airports” Kirkland claimed. “The understandings gained from our research study may notify network-based strategies to regulate the invasibility of illness.”

Originally published on Scitechdaily.com. Read the original article.

Reference: “Impact of varying community networks on disease invasion” by Kirkland, S., Shuai, Z., van den Driessche, P., & Wang, X., 10 June 2021, SIAM Journal on Applied Mathematics.
