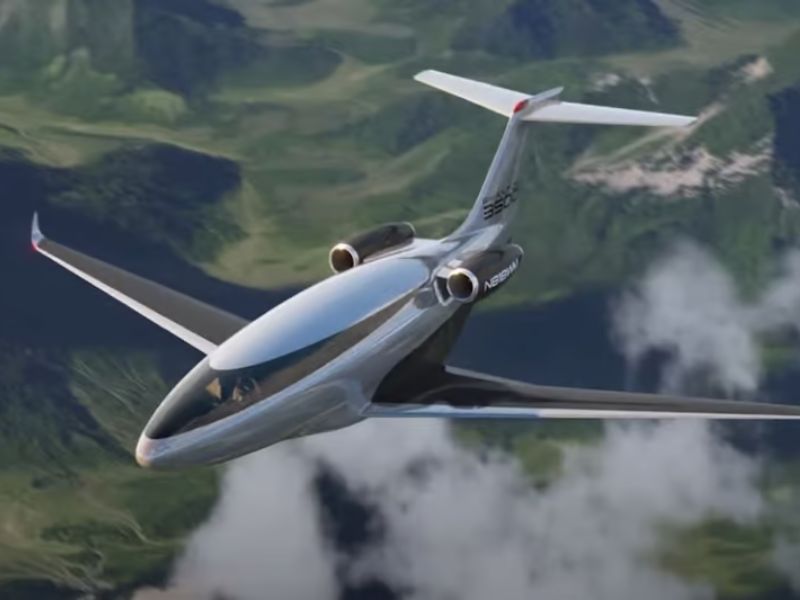

Phantom 3500 Swaps Windows For Ultra-efficient Transonic Flight

Who needs windows when you can have an incredibly efficient transonic passenger flight? That seems to be the reasoning behind Otto Aviation’s Phantom 3500 jet, which ditches traditional windows in favor of optimized laminar flow, aiming to reduce weight and burn less fuel.

Engineers vs. Windows: A long-standing rivalry

Ask an aerospace engineer how they really feel about windows on aircraft, and the expression you’ll get will likely resemble Captain Ahab discussing Moby Dick. In short: engineers hate windows. And with good reason.

The ideal aircraft fuselage would be a smooth, uninterrupted cylinder. Installing windows compromises that structure, creating weak spots where stress can build up. They also add weight and interfere with the airflow over the aircraft’s surface, increasing drag.

Yet all of that is tolerated just to avoid locking passengers inside a cylinder without any external view, which could trigger panic or claustrophobia. Not exactly an engineer’s dream scenario.

Based on flight tests with Otto’s Celera 500L prototype and the use of Dassault Systèmes’ 3DEXPERIENCE platform, the Phantom 3500 aims to achieve a 35% improvement in fuel efficiency through sustained laminar flow. This type of airflow moves smoothly and in parallel over the wings, fuselage, and tail — like a deck of cards sliding effortlessly with minimal interaction between layers. The air barely touches the surface, resulting in nearly frictionless movement.

Transonic performance and its advantages

If the Phantom 3500 maintains this level of performance — especially within the transonic speed range between Mach 0.8 and 1.2 — it will reduce drag, increase fuel economy without sacrificing performance, extend its range, reach higher speeds, require lighter engines and structural components, and deliver a smoother ride.

Using advanced carbon-fiber materials to craft continuous, polished surfaces, the Phantom 3500 takes efficiency to the next level. By removing the windows, the aircraft gets closer to the ideal aerodynamic shape for transonic laminar flow — a change sure to bring a smile to any aerospace engineer’s face.

Digital views: A new passenger experience

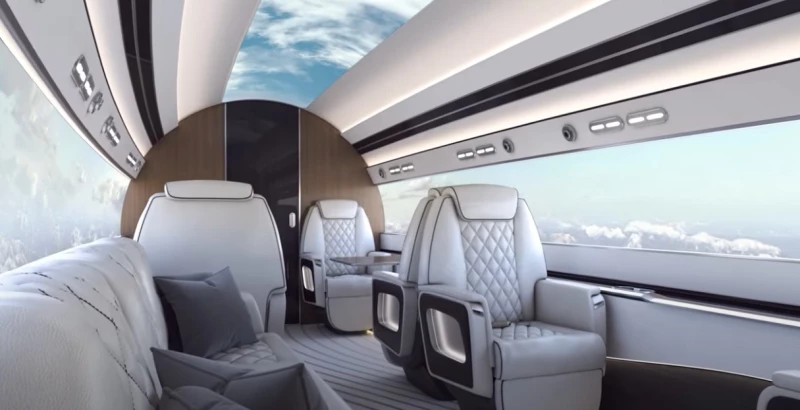

But what about the passengers? They’re not left in the dark. The 800 ft³ (about 22.65 m³) cabin offers an even better view than traditional windows. High-definition digital panels line the cabin walls and even the ceiling, creating an immersive and open experience that may well replace claustrophobia with a bit of agoraphobia.

The Phantom 3500 features two engines and will offer a range of 3,200 nautical miles (about 5,926 km), a cruising altitude of 51,000 feet (15,545 m), and operating costs up to 50% lower than those of comparable aircraft. It may achieve up to 50% fuel efficiency and cut emissions by as much as 80%. The aircraft’s short, wide wings allow it to operate from runways shorter than 3,500 feet (1,067 m). It’s also said to produce fewer contrails — a potential bonus for conspiracy theorists.

Expert commentary and open questions

Mark Moore, CEO of Whisper Aero, noted on LinkedIn that the Phantom 3500 shows major design shifts from the Celera prototype — including a lower aspect ratio wing for STOL, a move from rear propeller to isolated turbofans, and an apparent switch from composite to aluminum fuselage. He emphasized the importance of past laminar flow research and expressed interest in seeing the reasoning behind these changes.

Otto Aviation expects the Phantom 3500 to enter service by 2030.
