Scientists Create Squid-Inspired ‘Liquid Windows ‘

A team of scientists at the University of Toronto has developed a multilayered fluidic system that can lower the energy prices of heating, cooling, and lighting buildings by enhancing the wavelength, intensity, and dispersion of light transmitted through windows.

Building climate control

Buildings are the costliest energy sinks on Earth. For their everyday operation, which greatly entails trying to heat, cool, and light the indoor environment as exterior conditions change, buildings require 32% of the energy and 50% of the electricity consumed worldwide, representing around 25% of our greenhouse gas emissions.

With expanded urbanization, the emissions associated with buildings may double or triple by mid-century.

Worldwide air conditioning need is set to triple by 2050. Heating and cooling energy usage is expected to grow by 79% and 84% in the same timeframe.

In addition, electricity-based emissions from residential and commercial buildings have already quintupled and quadruped, respectively, in the last four ten years.

Underpinning this startling and increasing footprint is a fundamental unmet hurdle in building design: existing facades can not achieve selective, reconfigurable responses to their solar environment; no window, sunshade, or chromogenic technology is able to individually tune the quantity, wavelength, and dispersion of incident sunlight as solar conditions shift.

According to University of Toronto scientist, Raphael Kay, buildings use heaps of energy to heat, cool and illuminate the rooms inside them.

Suppose we can strategically regulate the quantity, type, and direction of solar energy that enters our buildings. In that case, we can enormously lower the amount of work we ask heaters, coolers, and lights to do.

Currently, some ‘smart’ building technologies such as automated blinds or electrochromic windows– which change their opacity in response to an electric current– can be utilized to control the quantity of sunshine in the area.

But these systems are limited: they can not discriminate between different wavelengths of light, neither can they control how that light gets distributed spatially.

Windows to the future

Sunlight has visible light, which affects the illumination in the building. However, it also has other invisible wavelengths, such as infrared light, which we can visualize basically as heat.

In the middle of the day in winter, you’d most likely wish to let in both, yet in the middle of the day in summer, you’d wish to let in only the visible light and not the heat. Present systems commonly can’t do this: they either obstruct both or neither. They likewise have no capacity to guide or spread the light in beneficial ways.

The system developed by Kay and colleagues leverages the power of microfluidics to supply an alternative.

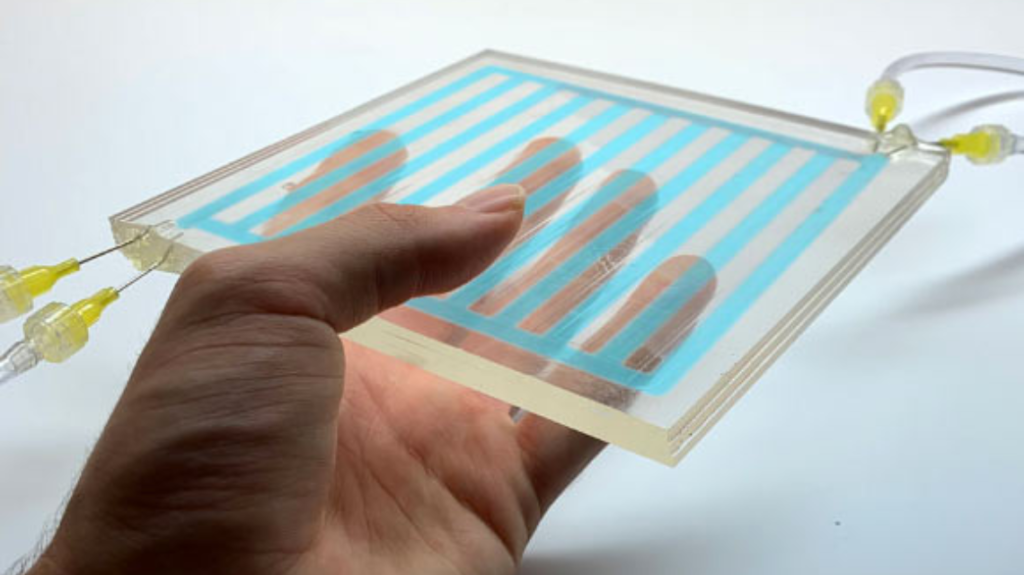

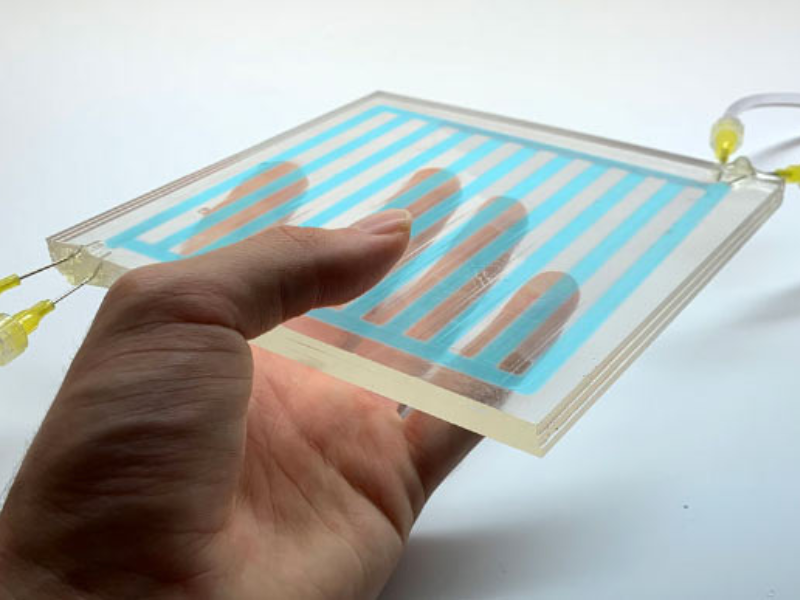

Their prototypes involve flat sheets of plastic that are permeated with a range of millimeter-thick channels through which fluids can be pumped.

Personalized pigments, particles, or other molecules can be blended into the fluids to control what type of light gets through– such as visible vs. near-infrared wavelengths– and in which direction this light is then distributed.

These sheets can be combined in a multi-layer stack. Each layer is responsible for a different optical function: controlling the intensity, filtering the wavelength, or tuning the scattering of transmitted light indoors.

The system can optimize light transmission by utilizing small, digitally-controlled pumps to add or eliminate fluids from each layer.

Kay says that it’s simple and low-priced, yet it also enables unbelievable combinatorial control. We can design liquid-state, dynamic building facades that do basically anything you would like to do in terms of their optical properties.

Working like a squid

The work improves another system that uses injected pigment, created by the same group previously this year.

While that research pulled inspiration from the color-changing abilities of marine arthropods, the current system is more analogous to the multilayered skin of a squid.

Many species of squid have skin that contains piled layers of specialized organs, including chromatophores, which control light absorption, and iridophores, which influence reflection and iridescence.

These individually-addressable aspects work together to create unique optical behaviors that are only possible via their blended operation.

The authors built in-depth computer models that evaluated the potential energy effect of covering a hypothetical building in this sort of dynamic facade. These models were informed by physical properties measured from the prototypes.

They likewise simulated various control algorithms for activating or deactivating the layers in response to modifying ambient conditions.

According to Kay, if we had simply one layer that works on modulating the transmission of near-infrared light– not even touching the visible part of the spectrum– we could save about 25% each year on heating, cooling, and lighting energy over a static baseline. If we have two layers, infrared and visible, it’s more like 50%. These are really significant savings.

New energy

In the new research, the control algorithms were made by humans. However, the challenge of optimizing them would be a suitable task for artificial intelligence, a possible future direction for the research.

According to the University of Toronto’s Professor Ben Hatton, the idea of a building that can learn and adjust this dynamic range to optimize for seasonal and daily changes in solar conditions is extremely interesting to us.

They are additionally working on how to scale this up effectively to ensure that you can actually cover a whole building.

That will certainly take work, but given that this can all be made with simple, non-toxic, low-cost materials, it is a challenge that can be addressed.
