Tiny Electrical Vortexes Close Gap Between Ferroelectric and Ferromagnetic Materials

Tiny Electrical Vortexes Close Gap Between Ferroelectric and Ferromagnetic Materials

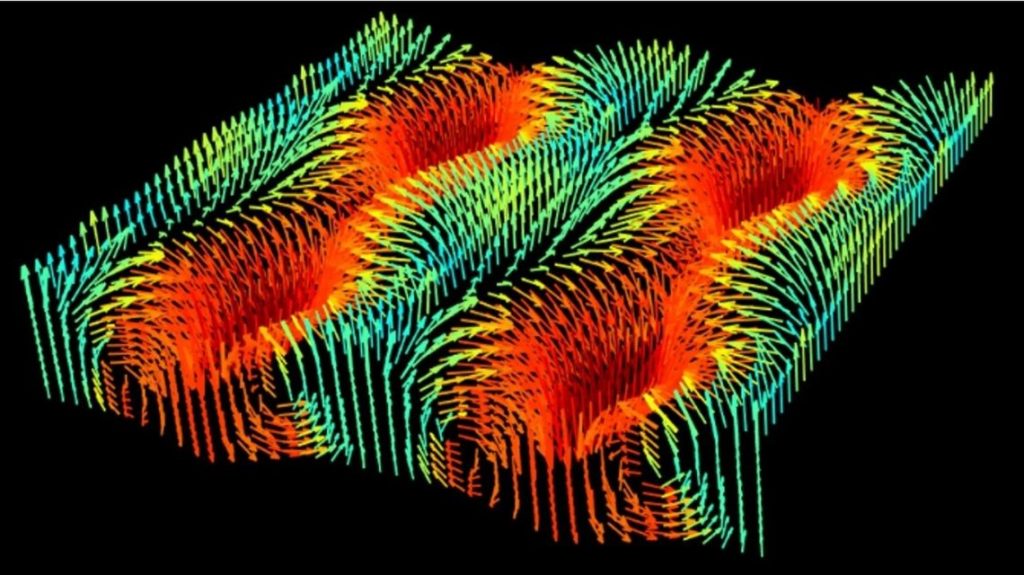

The image represents the 3D model of the polarization pattern in the ferroelectric PbTiO3 representing the cycloidal modulation of the vortex core. Credit: University of Warwick

Ferromagnetic materials possess a self-generating magnetic field; ferroelectric materials create their own electrical field. Electric and magnetic fields are important. Physics tells us that they are entirely different classes of material. Now the finding by University of Warwick-led scientists of a complex electrical ‘vortex-like’ pattern that mirrors its magnetic equivalent indicates that they could actually be two sides of the very same coin.

Ferroelectric vs Ferromagnetic materials

As explained in a new study for the journal Nature, financed by the Engineering and Physical Sciences Research Council (EPSRC), part of UK Research and Innovation, and the Royal Society, the outcomes give the first proof of a process in ferroelectric materials equivalent to the Dzyaloshinskii– Moriya interaction in ferromagnets. This communication plays a critical function in stabilizing topological magnetic structures, such as skyrmions, and it may be important for potential brand-new electronic technologies exploiting their electrical analogs.

Mass ferroelectric crystals have been utilized for years in a variety of technologies, including sonar, audio transducers, and actuators. These technologies utilize the intrinsic electric dipoles and their inter-relationship between the material’s crystal structure and applied fields.

For this research study, the researchers created a thin film of the ferroelectric lead titanate sandwiched between the ferromagnet strontium ruthenate layers, each approximately 4 nanometres thick– only two times the thickness of a single strand of DNA.

While the atoms of both materials form a single continuous crystal structure, in the ferroelectric lead titanate layer, the electric polarization would generally form multiple ‘domains,’ like a honeycomb. These domains can just be observed using cutting-edge transmission electron microscopy and X-ray scattering.

However, when the University of Warwick group examined the structure of the joined layers, they noticed that the domains in the lead titanate were a intricate topological structure of lines of vortexes, spinning alternately in different ways.

Practically similar behavior has likewise been seen in ferromagnets, where it is known to be produced by the Dzyaloshinskii– Moriya interaction (DMi).

Compelling evidence arises

Marin Alexe, lead author of the study and Professor of the University of Warwick Department of Physics stated: “If you take a look at how these characteristics scale down, the distinction between ferromagnetism and ferroelectricity becomes less and less important. It could be that they will certainly merge eventually in one unique material. This could be artificial and incorporate extremely small ferromagnets and ferroelectrics to benefit from these topological attributes. It is extremely clear to me that we are at the superficial as far as where this study is going to go.”

Dorin Rusu, a postgraduate student at the University of Warwick and co-author in study, stated: “Realizing that in ferroelectrics dipolar textures that resemble their magnetic counterpart to an extent ensures further research into the fundamental physics that drives such similarities. This result is not a negligible matter when you take into consideration the distinction in the origin and strengths of the electric and magnetic fields.”

These vortexes existence had formerly been theorized. However, it took using sophisticated transmission electron microscopes at the University of Warwick, along with the use of synchrotrons at four other facilities, to observe them accurately. These techniques allowed the researchers to measure the position of every atom to a high level of certainty.

Professor Ana Sanchez co-author said: “Electron microscopy is a game-changing method in comprehending these topological structures. It is the essential tool in exposing the ins and outs of these novel materials, utilizing a subatomic beam of electrons to produce images of internal structure.”

Professor Thomas Hase co-author included: “Accessing high-end facilities across the UK, Europe, and United States has actually been vital for this specific research.”


Read the original article on PHYS.
