Tiny Photonic Chip Provides a Big Boost in Precision Optics

New technology of the integrated photonic chip

Researchers at the University of Rochester’s Institute of Optics, for the first time, distill unique interferometry into a photonic device. University of Rochester scientists, for the very first time, harbor a way of amplifying interferometric signals using inverse weak value amplification– without increment in extraneous input or “noise”– on an integrated photonic chip.

By combining two or more light sources, interferometers make interference patterns that can provide incredibly detailed information about everything they illuminate, from a tiny defect on a mirror to the dispersion of contaminants in the atmosphere to gravitational patterns in depths of the Universe.

“If you wish to measure something with very high precision, you almost always use an optical interferometer, since light stands for a highly precise ruler,” claims Jaime Cardenas, assistant professor of optics at the University of Rochester.

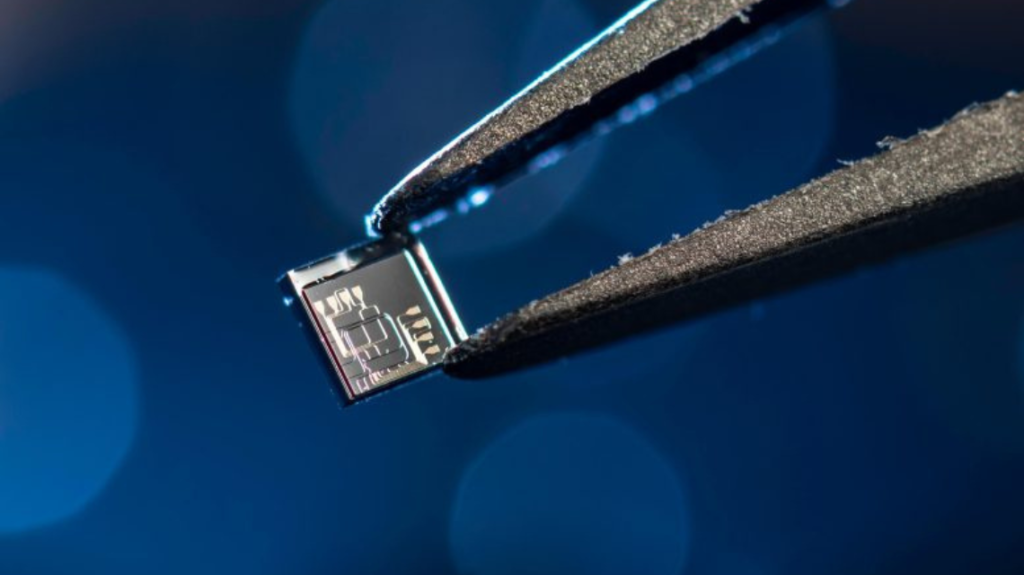

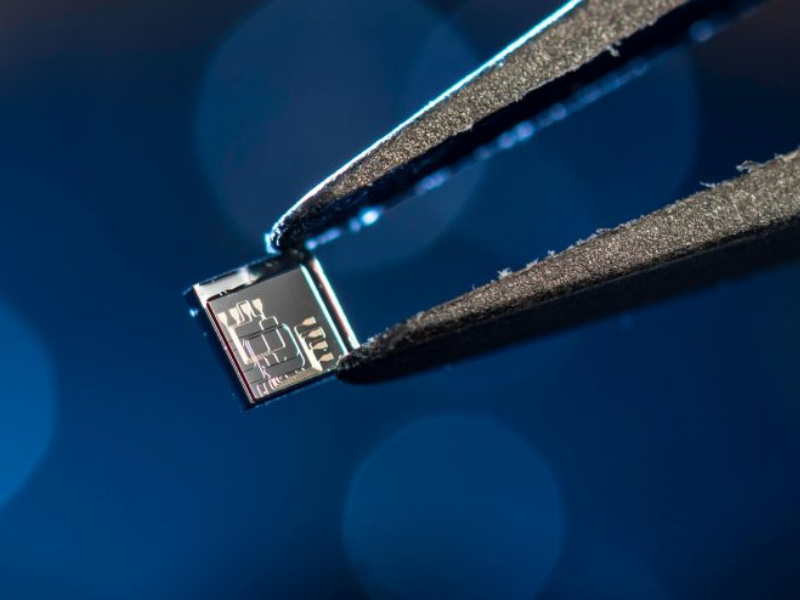

The Cardenas Lab has produced a method to make these optical workhorses a lot more helpful and sensitive. Meiting Song, a Ph.D. student, has for the very first time packaged an experimental way of amplifying interferometric signals– without a matching increase in extraneous, unnecessary input, or “noise”– on a 2 mm by 2 mm integrated photonic chip. The advancement, explained in Nature Communications, is based on a theory of weak value amplification with waveguides that were developed by Andrew Jordan, a professor of physics at Rochester, and students in his laboratory.

Weak value amplification

Together with his team, Jordan has been researching weak value amplification for over ten years. They have applied mode analysis uniquely on a free space interferometer with weak value amplification, which closed the gap between free space and waveguide weak value amplification. As a result, they managed to confirm the theoretical feasibility of incorporating weak value amplification on a photonic chip. More collaborators include Yi Zhang and Juniyali Nauriyal of the Cardenas laboratory, John Steinmetz of the Department of Physics and Astronomy, and Kevin Lyons of Hoplite AI.

“You can think of the weak value amplification strategy as offering you amplification for free. It is not absolutely free since you forfeit power. However, it is practically for free, since you can amplify the signal without including noise– which is a huge deal,” Cardenas says.

Weak value amplification is based upon the quantum mechanics of light and generally involves directing only certain photons containing the data required for a detector. The concept has been shown before, “but it is always with a large setup in a laboratory with a table, several mirrors as well as laser systems, all very meticulously as well as thoroughly aligned,” Cardenas states.

According to Cardenas, Meiting developed all of this and placed it into a photonic chip. Having the interferometer on a chip means you can place it on a rocket, or a helicopter, in your phone– anywhere you want– as well as it will never be misaligned.

Traditional Interferometry vs. Photonic Chip

The device Song produced does not look like a typical interferometer. Rather than using a set of tilted mirrors to bend light and develop an interference pattern, Song’s device includes a waveguide crafted to propagate the wavefront of an optical field through the chip.

“This is just one of the novelties of the paper,” Cardenas says. “No one has actually discussed wavefront engineering on a photonic chip.”

The use of conventional interferometers can increase the signal-to-noise ratio, leading to even more meaningful input by merely cranking up the laser power. However, there is, in fact, a limitation, Cardenas states since the traditional detectors used with interferometers can deal with only so much laser power before turning into saturated. At this point, there cannot be an increase in the signal-to-noise ratio.Song’s device eradicates that limitation by reaching the same interferometer signal with less light at the detectors, leaving space to increase the signal-to-noise ratio by including laser power.

“If the very same quantity of power reaches the detector in Meiting’s weak value device as in a conventional interferometer, Meiting’s device will always have a preferable signal to noise ratio,” Cardenas claims. “This work is truly awesome, really subtle, with a lot of outstanding physics as well as engineering taking place behind the scenes.”

Following actions will include adapting the device for coherent communications and quantum applications using squeezed or knotted photons to enable devices such as quantum gyroscopes.

Read the original article on Scitech Daily.

Related “New Photonic Chip for Isolating Light May Be Key to Miniaturizing Quantum Technology“

The project was financed by A. N. Jordan Scientific, in partnership with Leonardo DRS, and partially by the Center for Emerging and Innovative Sciences (CEIS). Fabrication was conducted at the Cornell NanoScale Facility, with support from the National Science Foundation.
