Hybrid-Electric Airplane Idea May Reduce Aviation’s Air Pollution Trouble

The proposed layout might minimize nitrogen oxide exhausts by 95 percent, a brand-new study finds.

At cruising altitude, planes launch a constant stream of nitrogen oxides into the environment, where the chemicals can stick around to create ozone and fine particulates. Nitrogen oxides, or NOx, are a significant source of air contamination and are connected with asthma, respiratory disease, and cardiovascular problems. Previous research study has shown that the generation of these chemicals caused by global aviation leads to 16,000 premature deaths annually.

Currently, MIT engineers have an idea for airplane propulsion. They expect it to eliminate 95 percent of air travel’s NOx discharges and thus decrease the amount of linked early deaths by 92 percent.

The idea is inspired by emissions-control systems used in ground transportation vehicles—several heavy-duty diesel vehicles today house post-combustion emissions-control systems to lower the NOx created by engines. The scientists currently suggest a similar design for aviation, with an electric twist.

Today’s airplanes are driven by jet engines anchored underneath each wing. Each engine holds a gas turbine that powers a propeller to push the plane through the air as emissions from the turbine flow out the back. Because of this setup, emissions-control devices were out of the question, as they would hinder the thrust created by the engines.

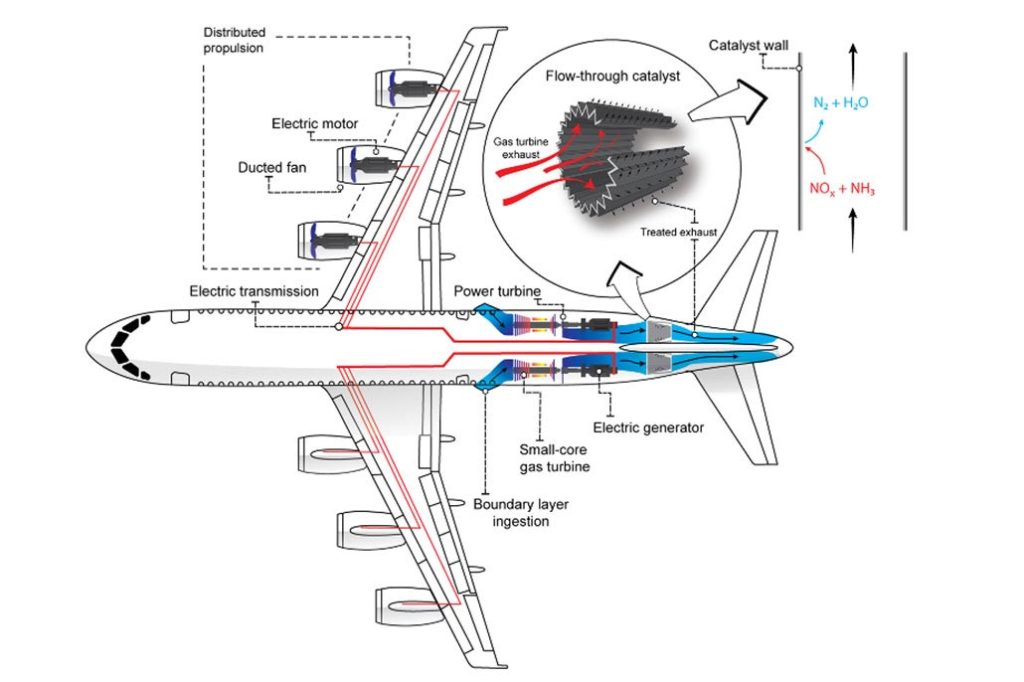

In the new hybrid-electric, or “turbo-electric,” style, an airplane’s power source would certainly still be a conventional gas turbine; however, it would be incorporated within the aircraft’s cargo hold. Instead of directly powering propellers or fans, the gas turbine would drive a generator, also in the hold, to generate electricity, which would undoubtedly, after that, electrically power the aircraft’s wing-mounted, electrically driven propellers or fans. The emissions created by the gas turbine would be fed right into an emissions-control system, generally similar to those in diesel vehicles, which would clean the emission before ejecting it right into the atmosphere.

” This would still be a significant engineering challenge, yet there aren’t essential physics limitations,” says Steven Barrett, professor of aeronautics and also astronautics at MIT. “If you intend to reach a net-zero aeronautics industry, this is a potential way of solving the air contamination part of it, which is considerable, and in a manner that’s technologically practical.”

The details of the concept, including evaluations of its potential fuel cost and health impacts, were published on January 14th in the journal Energy and Environmental Science released. The paper’s co-authors are Prakash Prashanth, Raymond Speth, Sebastian Eastham, and Jayant Sabnins, all members of MIT’s Lab for Aviation and the environment.

A semi-electrified strategy

The team’s hybrid-electric aircraft seeds grew out of Barrett and his group’s work researching the Volkswagen diesel exhausts scandal. In 2015, environmental regulators found that the vehicle supplier had been deliberately manipulating diesel motors to trigger onboard emissions-control systems exclusively throughout lab testing, such that they appeared to fulfill NOx exhausts criteria yet, as a matter of fact, produced approximately 40 times a lot more NOx in real-world driving conditions.

As he considered the health impacts of exhaust cheating, Barrett also became aware of diesel vehicles’ emissions-control systems generally. Around the same time, he was likewise checking into the opportunity to engineer massive, all-electric aircraft.

” The research study that’s been done in the last couple of years shows you might most likely electrify a smaller aircraft; however, for big aircraft, it will not happen soon without quite major discoveries in battery technology,” Barrett claims. “So I wondered, maybe we can use the electric propulsion from electric aircraft, and the gas turbines that have been around for a long time and are very trustworthy as well as efficient, and mix that with the emissions-control innovation that’s used in the automobile as well as ground power, to at the very least make it possible for semielectrified planes.”

Flying with zero impact

Before plane electrification had been seriously thought about, it could have been possible to execute an idea such as this, as an example of an add-on to the back of jet engines. Yet this design, Barrett notes, would “kill any stream of thrust” that a jet engine would certainly produce, effectively grounding the design.

Barrett’s idea gets around this constraint by dividing the thrust-producing propellers or fans from the power-generating gas turbine. Instead, the propellers or fan would be directly powered by an electric generator, which the gas turbine would power. The emission from the gas turbine would be fed into an emissions-control system, which could be folded, accordion-style, in the airplane’s cargo hold– entirely isolated from the thrust-producing propellers.

He visualizes the bulk of the hybrid-electric system– gas generator, electrical generator, and exhausts control system– would fit within the sturdy belly of an aircraft, where there can be sufficient area in many commercial aircraft.

In their brand-new paper, the scientists calculate that if such a hybrid-electric system were enforced on a Boeing 737 or Airplane A320-like aircraft, the added weight would certainly need around 0.6 percent more fuel to fly the plane.

” This would certainly be much more possible than what has been suggested for all-electric airplanes,” Barrett claims. “This design would add a few hundreds of kilograms to an aircraft, as opposed to adding several tons of batteries, which would more than a magnitude of extra weight.”

The researchers also determined the emissions that would be generated by a large aircraft, with and without an emissions control system, and found that the hybrid-electric design would eliminate 95 percent of NOx discharges.

If this system was available throughout all aircraft worldwide, they further estimate that 92 percent of pollution-related deaths as a result of aeronautics would undoubtedly be avoided. They arrived at this estimate using a global model to trace the flow of air travel emissions with the atmosphere and determined just how much different populations worldwide would undoubtedly be exposed to these exhausts. They, after that, converted these direct exposures to mortalities or estimates of the amount of individuals who would pass away as a result of direct exposure to aviation discharges.

The group is currently working with styles for a “zero-impact” aircraft that flies without producing NOx and other chemicals like climate-altering carbon dioxide.

“We need to reach essentially zero net-climate impacts and also absolutely no deaths from air pollution,” Barrett states. “This current design would successfully remove aeronautics’s air contamination trouble. We’re now servicing the climate impact part of it.

Originally published on MIT NEWS. Read the original article.

Reference: “Post-combustion emissions control in aero-gas turbine engines” by Prakash Prashanth, Raymond L. Speth, Sebastian D. Eastham, Jayant S. Sabnis, and Steven R. H. Barrett, 7 December 2020, Energy and Environmental Science.
DOI: 10.1039/D0EE02362K
